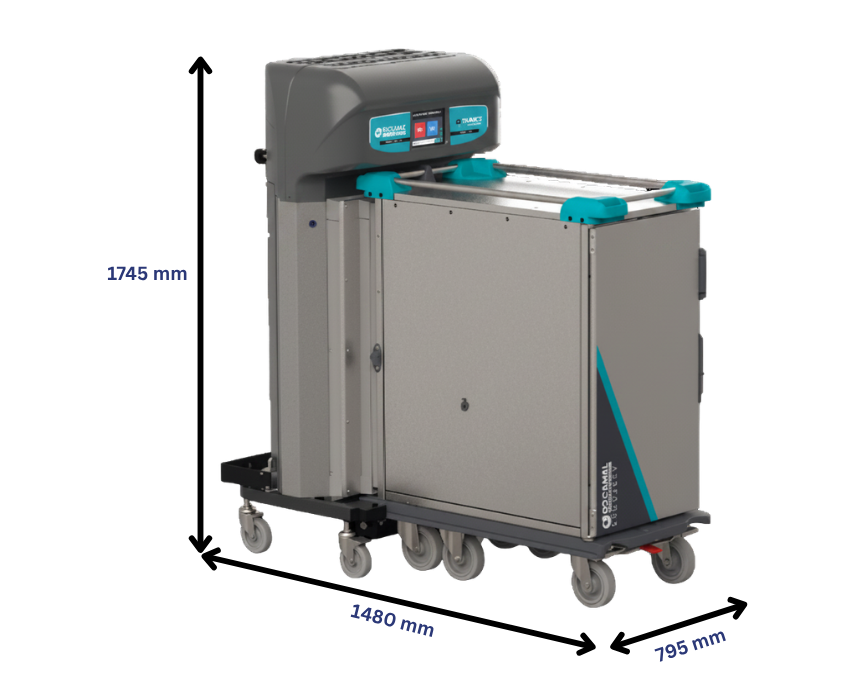

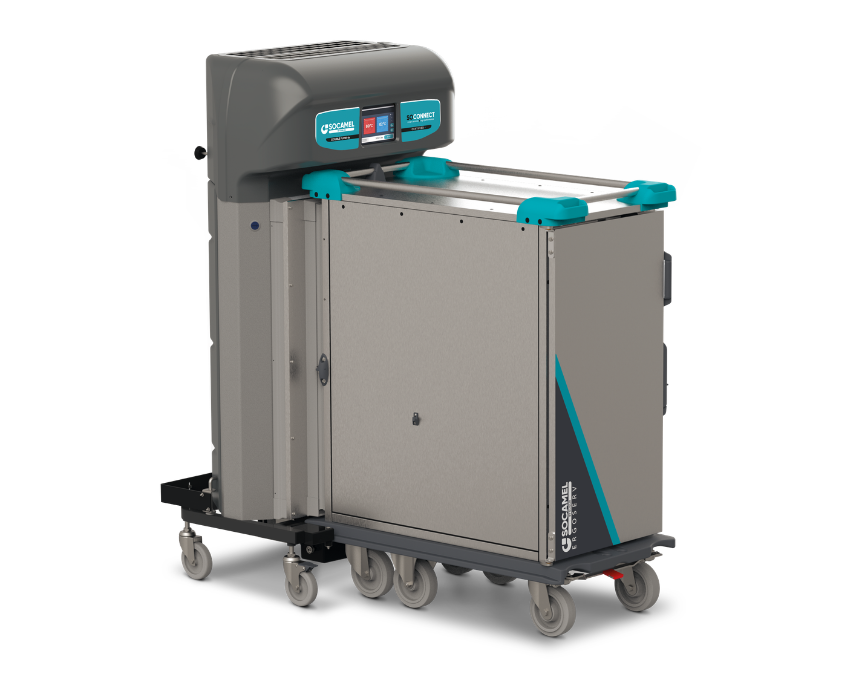

Socamel Double Flow ErgoServ 4S Junior Optimum 3 well with 12 Levels
Designed for healthcare facilities that demand exceptional meal quality and operational efficiency, the Socamel Double Flow ErgoServ 4S Junior Optimum 3 wells with 12 levels delivers advanced meal distribution with uncompromising temperature control. Purpose built to accommodate up to 36 trays, this high capacity trolley seamlessly integrates with the docking station. The system also utilises forced and directed air convection technology to maintain precise hot and cold food temperatures throughout the distribution process. Its ergonomic, modular design streamlines meal service, reduces manual handling and ensures every tray is delivered fresh, safe and ready to serve making it ideal choice for hospitals, aged care facilities and large scale catering operations.

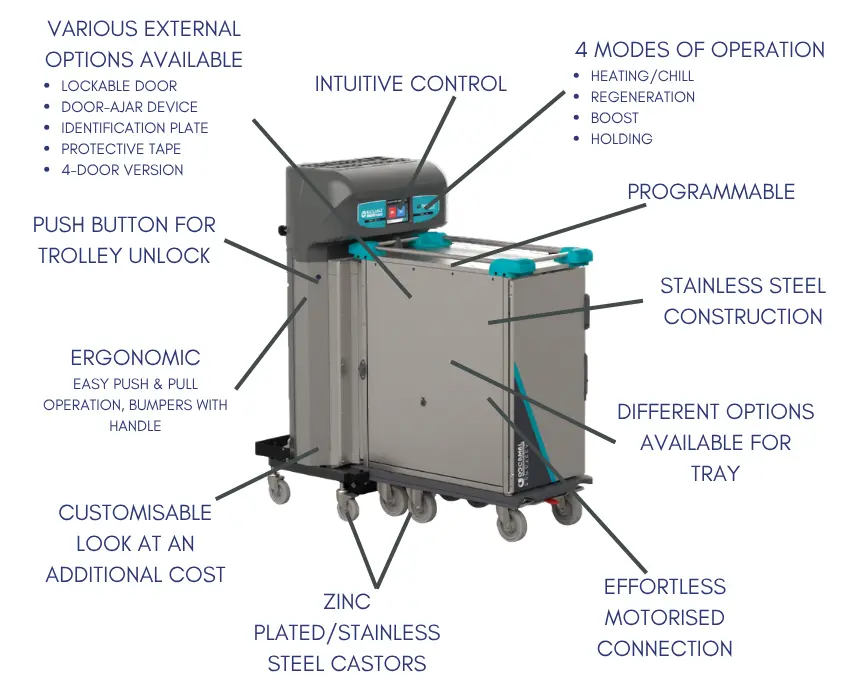

Designed For Everyday Use
Smooth rolling performance ensures reliable, hassle free transport shift after shift.

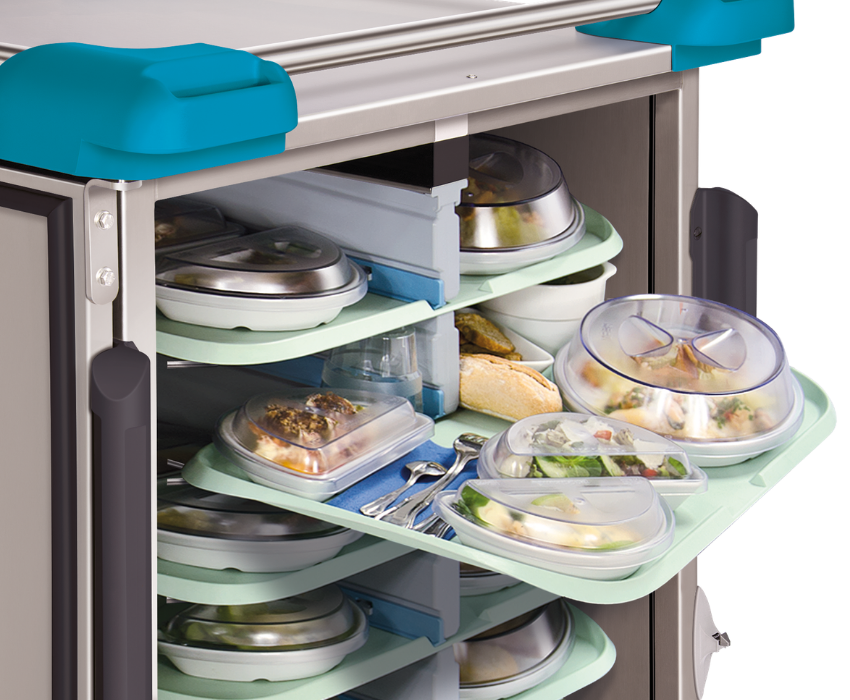

Optimum Tray Compatibility
Engineered to perfectly fit compact Optimum trays for reliable meal transport, temperature retention and streamlined service.
Configured For Efficiency
Customise the look of your trolley that match your brand identity (available at an additional cost).

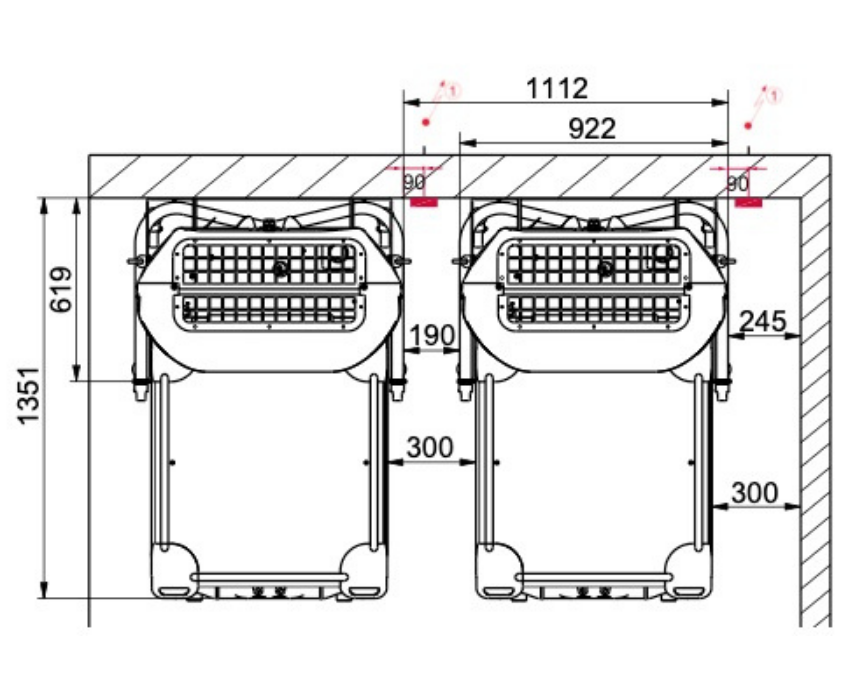

The Double Flow Docking Station:

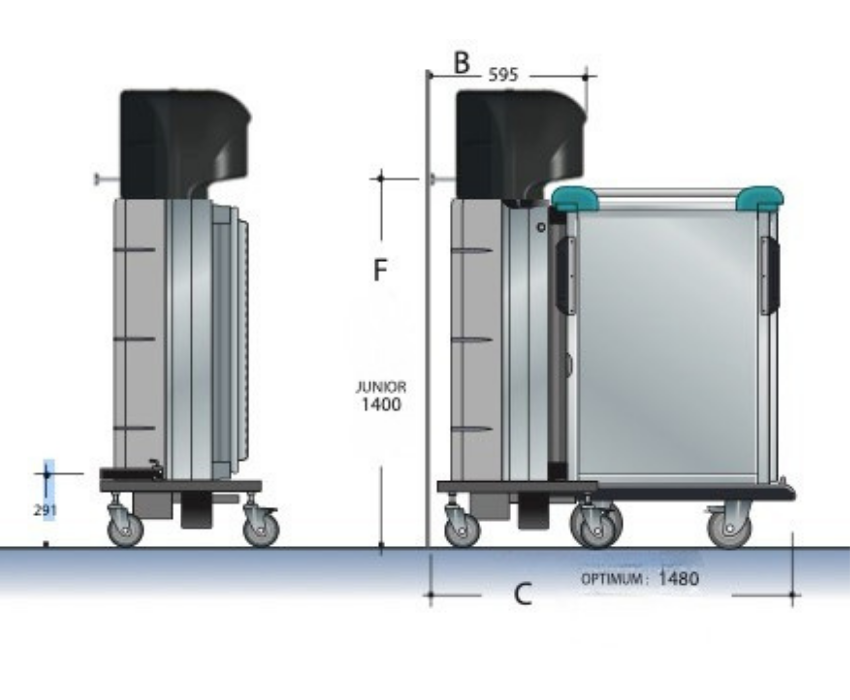

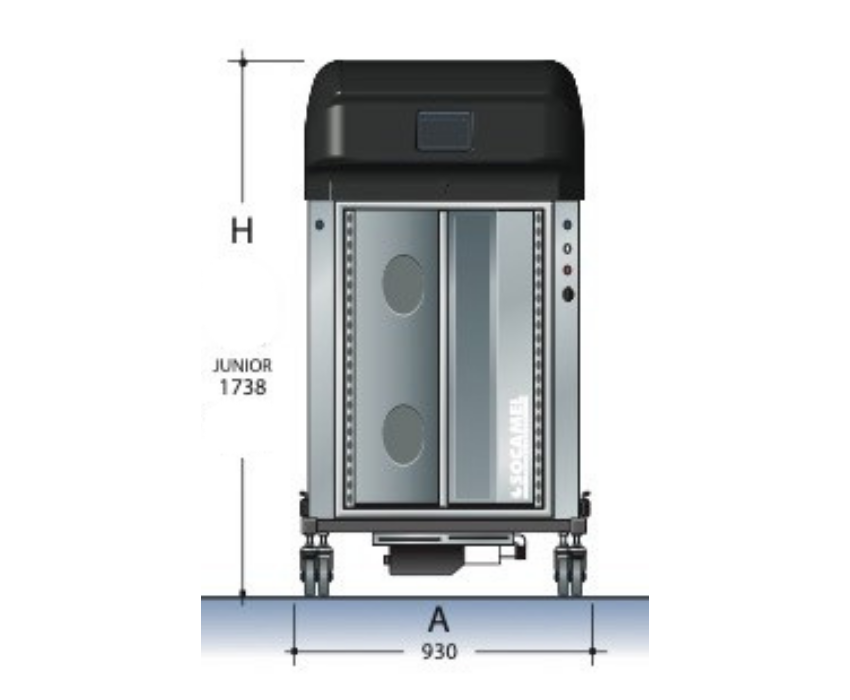

Dimensions (W x D x H) | 930mm x 595mm x 1738mm |

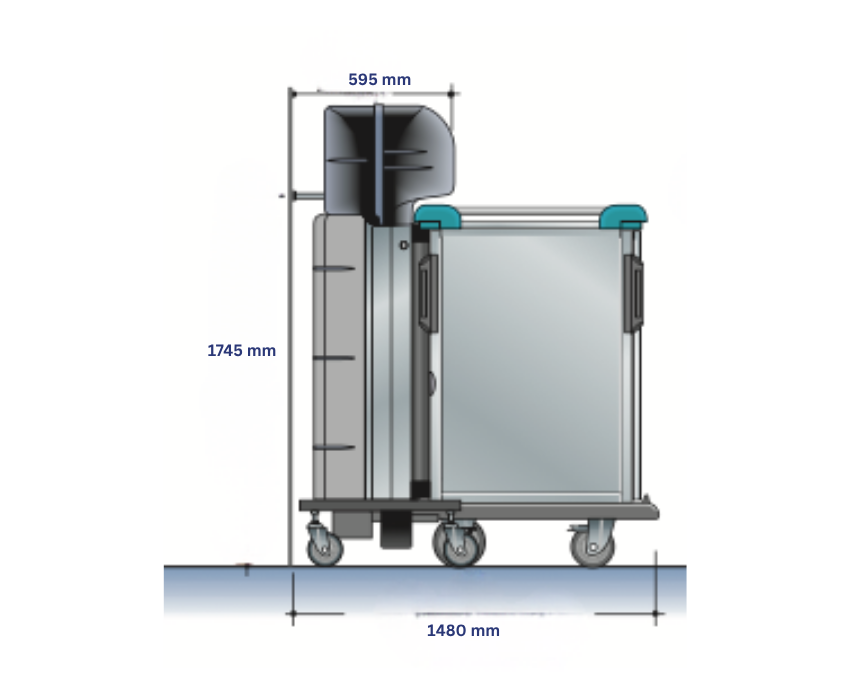

Docking station + shuttle length | 1480 mm |
Buffer Height | 1400 mm |
Gross Weight | 152 kg |
Voltage | 415 V three phase AC |
Frequency | 50 Hz |
Power | 8340 W |
Recommended Fuses | 3 x 16 A |
Technical Specifications
Socamel Double Flow ErgoServ 4s Junior Optimum 3 wells with 12 Levels
The ErgoServ Trolley:

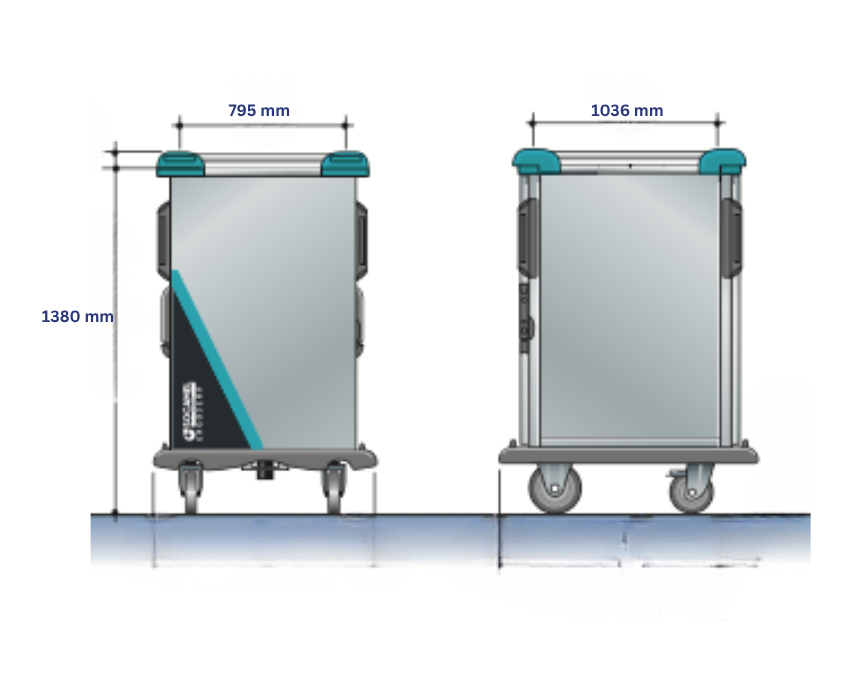

Dimensions (W x D x H) | 795mm x 1036mm x 1380mm |
Net Weight | 168 kg |
Maximum Load | 160 kg |

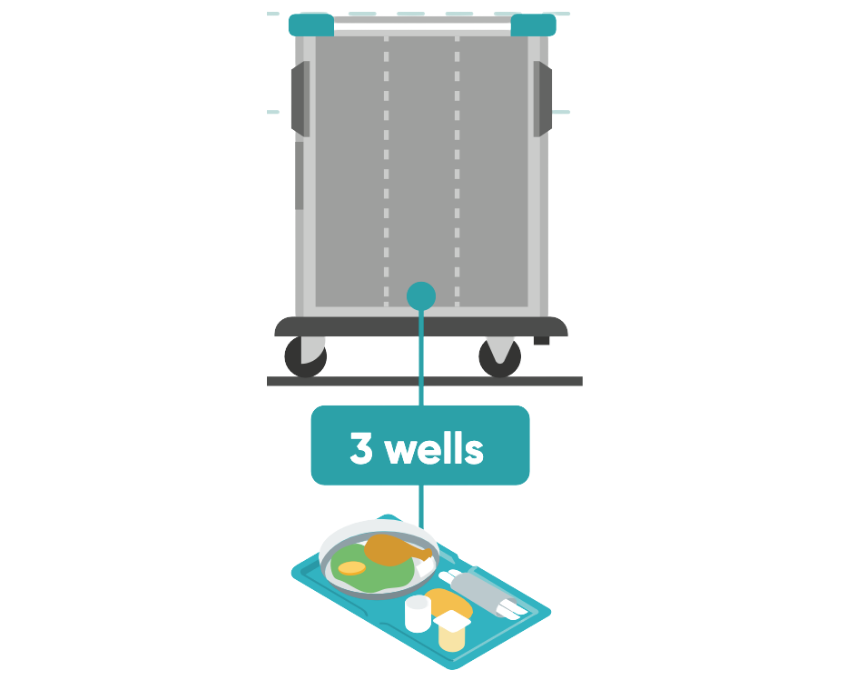

Number of Levels | 3 x 12 |
Maximum number of trays | 36 |
Pitch between levels | 78 mm |
Push/Pull/Motion | 2.5 / 2.5 / 1.5 daN |
For mobile devices, scroll to the right to view table.
Advanced Forced Air Convection Technology
Experience superior meal distribution with advanced Forced air convection technology, engineered to deliver precise, even and reliable temperature control throughout every meal service. By continuously circulating conditioned airflow around each tray, the Double Flow ErgoServ 4S ensures hot meals are regenerated quickly and maintained at the correct temperature, whilst chilled foods remain perfectly cooled until delivery.
This intelligent airflow system eliminates temperature inconsistencies across the trolley, helping preserve the flavour, texture, appearance and nutritional quality of every meal. Whether operating cook-serve or cook-chill workflows, the technology provides consistent performance that supports HACCP compliance, enhances food safety and delivers an exceptional dining experience for patients.
Designed for the demanding requirements of hospitals, aged care facilities and institutional healthcare environments, Advanced Forced air convection technology improves operational efficiency, minimises food waste and delivers dependable results with every meal distribution cycle.
Cook - Serve:
For cook-serve applications, the Double Flow ErgoServ 4S maintains freshly prepared meals at precise serving temperatures from the kitchen through to the point of service. The advanced forced air convection system evenly circulates conditioned air throughout the trolley, keeping hot meals appetising and cold components perfectly chilled during transport. The result is a reliable meal delivery solution that enhances food quality, improves patient satisfaction and supports efficient service throughout healthcare environments.
Cook - Chill:
The Double Flow ErgoServ 4S seamlessly supports cook-chill meal production by safely regenerating pre prepared chilled meals to the ideal serving temperature immediately before service. Advanced airflow technology ensures rapid, uniform heat distribution across every tray, maintaining the integrity of each dish while preserving flavour, texture and nutritional value. This approach enables healthcare facilities to optimise kitchen production, reduce food waste and deliver consistently high quality meals, even across large scale operations.

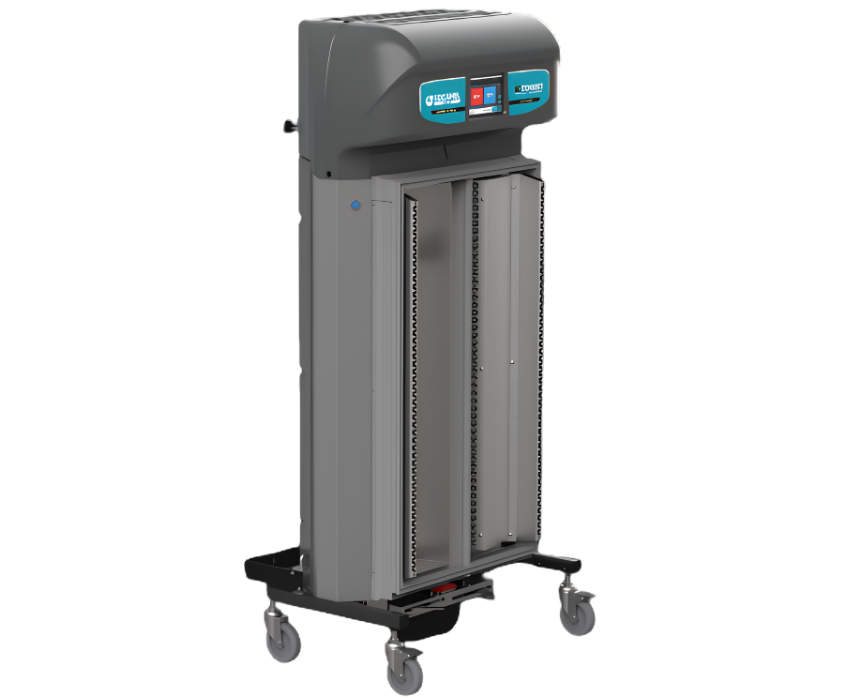

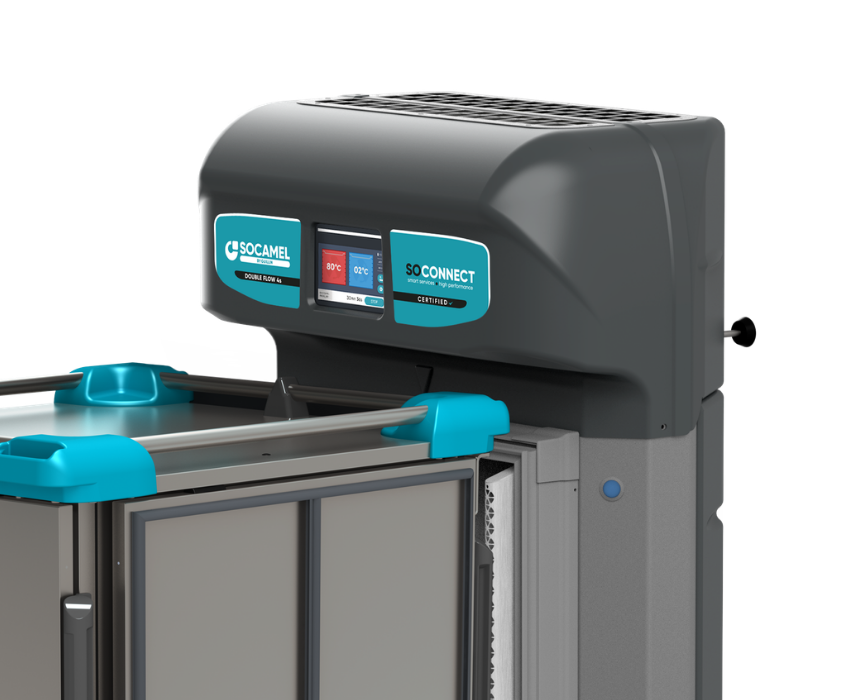

Double Flow Docking Station
The Socamel Double Flow Docking station is the intelligent power and temperature management hub behind the ErgoServ 4S meal distribution system. Designed to support demanding healthcare foodservice environments, it delivers precise heating and cooling performance to ensure every meal is served at the correct temperature. By combining advanced airflow technology with intuitive controls, consistent temperature maintenance and efficient operation across every meal service.
Whether supporting cook-serve or cook-chill workflows, the Double Flow docking station helps healthcare facilities improve food quality, streamline meal distribution and maintain compliance with stringent food safety standards. Its scalable design also allows organisations to expand their meal service capacity while ensuring dependable performance day after day.
Characteristics & Benefits:
- Delivers consistent conditioned airflow throughout the trolley for even heating and cooling performance.
- Quickly restores temperatures between service cycles to minimise downtime and maximise efficiency.
- Helps maintain controlled meal temperatures throughout the distribution process, supporting food safety requirements.
- Optimises energy consumption while delivering reliable heating and cooling performance.
- Built for continuous use in demanding hospital and aged care environments with dependable, consistent performance.
- Easily integrates into healthcare facilities of varying sizes and adapts to growing meal service requirements.
- User friendly controls simplify operation, monitoring and program selection.
Precision Dual Temperature Control: Maintain hot and chilled meal components simultaneously with dedicated airflow circuits, ensuring every tray is served at the ideal temperature for exceptional meal quality and patient satisfaction.
Uniform Airflow Performance: Advanced forced air convection technology circulates conditioned air evenly throughout the trolley, delivering consistent temperatures across every tray level while eliminating hot and cold spots.
Rapid Temperature Recovery: Engineered for busy healthcare environments, the docking station quickly restores optimal temperatures after door openings, helping preserve food quality and maintain efficient meal service.
Freshness & Food Safety Assured: Accurate temperature management supports meal freshness, protects food quality and assists facilities in maintaining HACCP compliant food service operations.

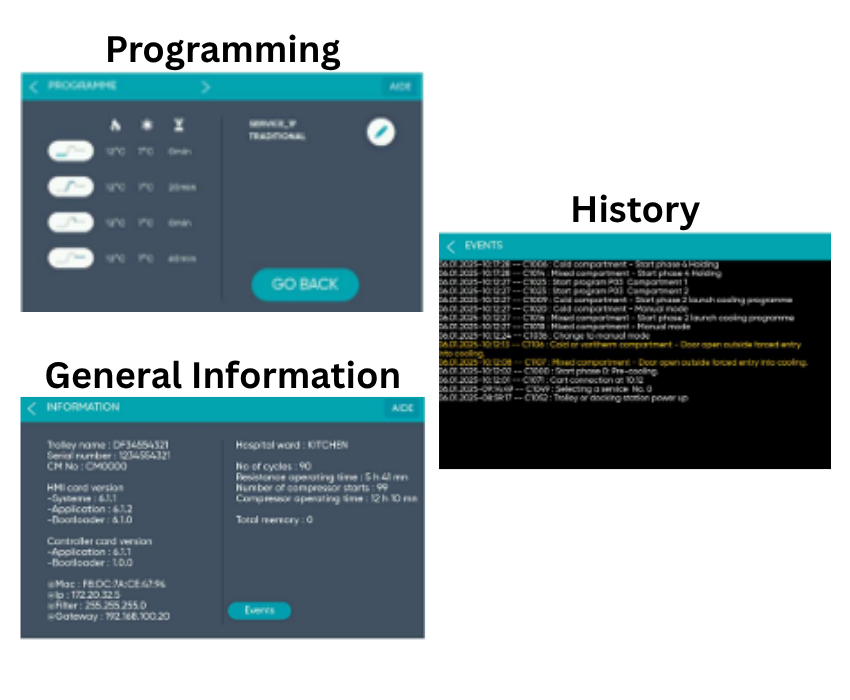

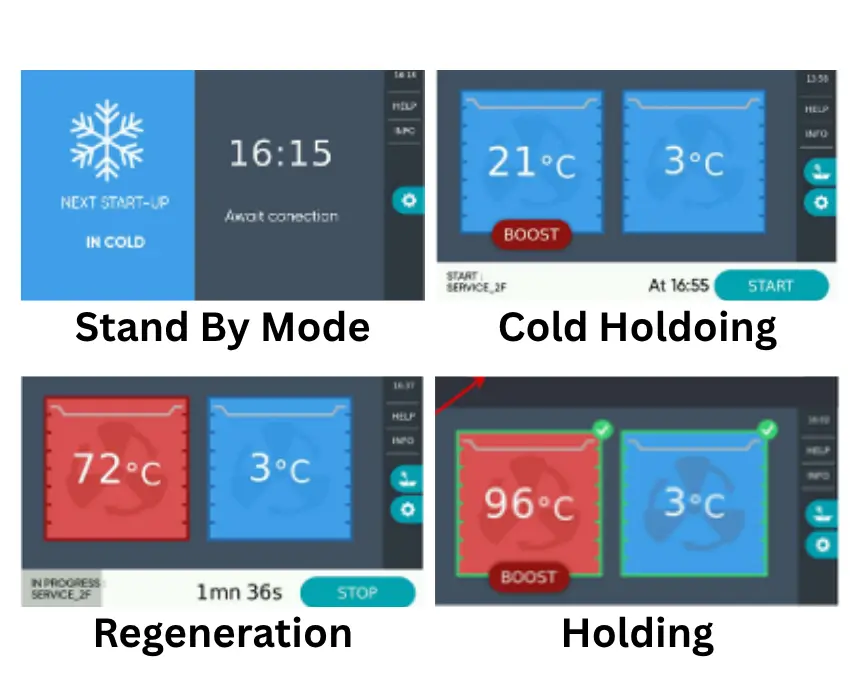

Intuitive Touchscreen Interface: A modern touchscreen control panel provides simple program selection, real time system monitoring and effortless operation, enabling staff to manage meal service with confidence.
Future Ready Scalability: Designed to grow with your operation, the Double Flow docking station supports multiple trolley configurations and adapts to the evolving needs of hospitals, aged care facilities and large scale healthcare kitchens.
Energy Efficient Operation: Optimised heating, cooling and airflow systems reduce energy consumption while improving workflow efficiency, helping lower operating costs without compromising performance.
Features & Benefits Breakdown
Multi Mode Operational Efficiency
Designed to adapt to a wide range of healthcare foodservice workflows, the Double Flow ErgoServ 4S supports cook-serve, cook-chill and cook-freeze meal production systems within a single platform. This operational flexibility enables facilities to choose a workflow that best suits their kitchen processes while maintaining precise temperature control, food safety and meal quality throughout distribution. Whether serving freshly prepared meals or regenerating chilled and frozen dishes, the system delivers consistent performance, improves operational efficiency and provides the versatility to meet evolving healthcare catering requirements.

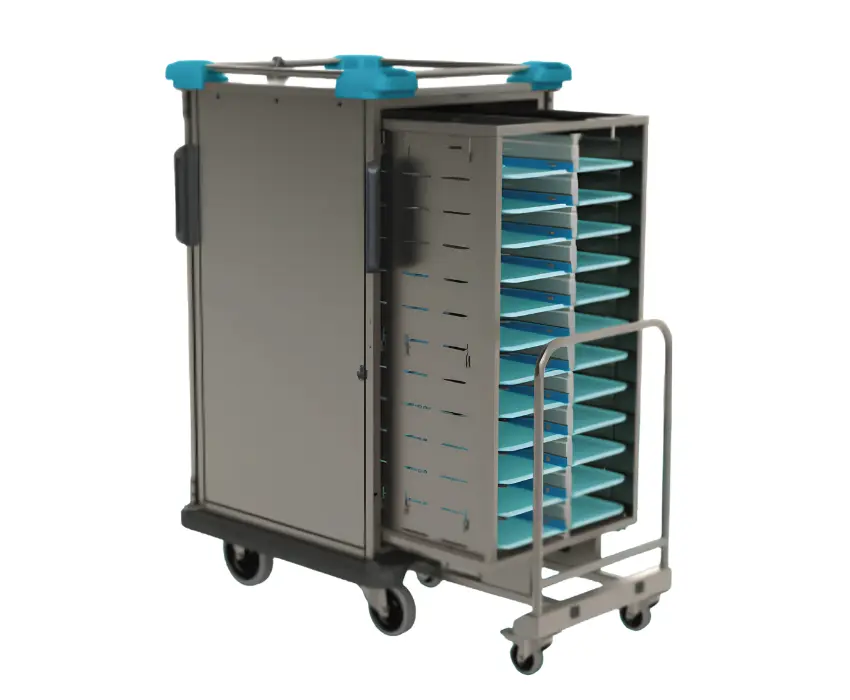

Robust Construction & Ergonomic Design
Built for the demanding requirements of healthcare meal distribution, the Double Flow ErgoServ 4S trolley features a durable stainless steel structure designed to deliver long lasting performance, hygiene and reliability in high use environments. The robust construction provides excellent resistance to daily wear while supporting easy cleaning and maintenance to meet strict healthcare foodservice standards. The integrated ErgoServ insert system enhances operational convenience with a practical and user focused design that simplifies tray loading, unloading and handling. Engineered for smooth workflow management, the insert provides secure tray positioning, improved organisation and effortless service throughout meal distribution.

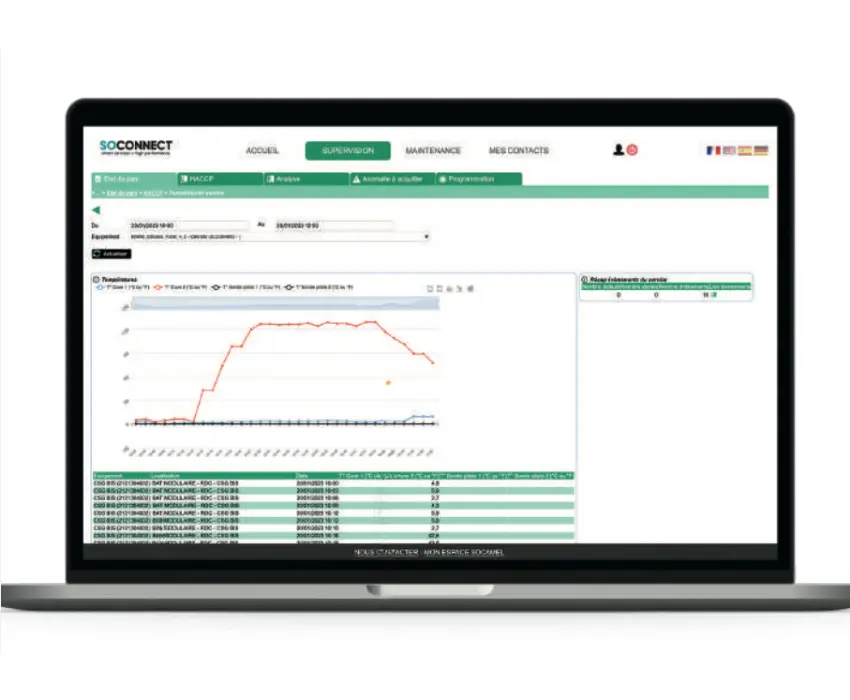

Smart Digital Management Platform
Enhance your meal distribution operations with SOCONNECT, an optional cloud based subscription platform designed to provide intelligent monitoring, fleet management and operational visibility for the Double Flow ErgoServ 4S system. By connecting your equipment through a central digital platform, SOCONNECT enables healthcare facilities to monitor performance, optimise workflows and make informed decision based on real time operational data. From temperature tracking and HACCP documentation to predictive maintenance insights and equipment performance monitoring, SOCONNECT helps improve food safety, reduce downtime and simplify daily management.
Effortless Cleaning & Flexible Tray Configuration
Designed with hygiene, efficiency and ease of use in mind, the Double Flow ErgoServ 4S trolley features a practical design that simplifies daily cleaning and maintenance routines. Its smooth stainless steel surfaces and accessible components allow for quick and thorough cleaning, helping healthcare facilities maintain high standards of hygiene and food safety. The innovative removable middle dividers within the trolley can be easily detached and repositioned without the need for any tools, allowing staff to quickly adjust the internal configuration to suit different tray arrangements and service requirements. This flexible design improves workflow efficiency, simplifies cleaning procedures and ensures the trolley remains adaptable to the changing needs of healthcare meal distribution operations.

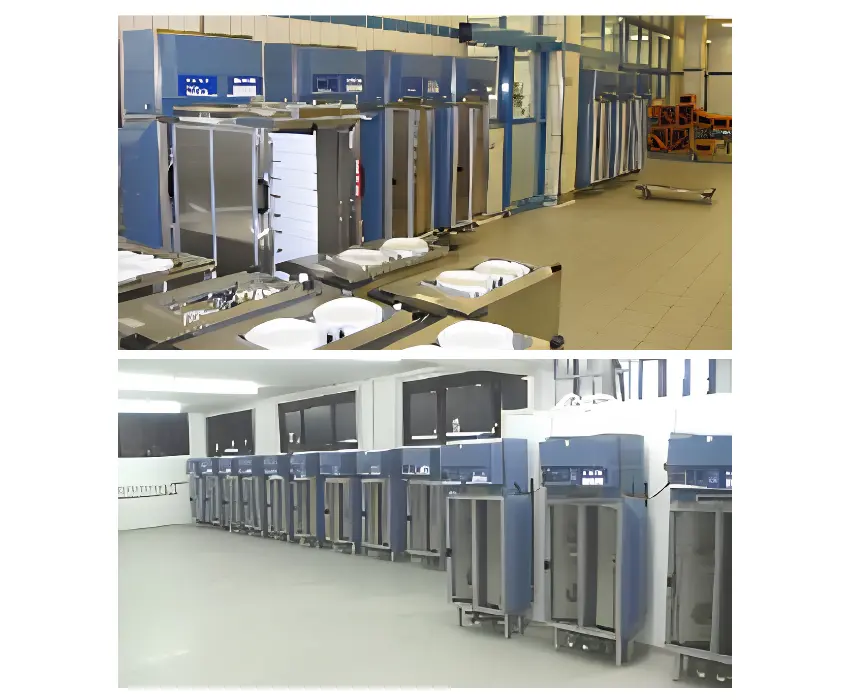

Compact Footprint with Maximum Efficiency
Engineered to deliver exceptional performance within a space efficient design, the Double Flow ErgoServ 4S trolley features a compact footprint that maximises operational flexibility without compromising meal capacity or functionality. Its streamlined design allows for easy manoeuvrability through corridors, service areas and healthcare environments where space optimisation is essential. The compact construction helps improve workflow efficiency, simplifies trolley handling and enables seamless integration into existing kitchen and distribution areas. Combining high capacity meal transport with a space saving design, the ErgoServ 4S provides a practical solution for hospitals, aged care facilities and healthcare operations seeking reliable performance in limited spaces.

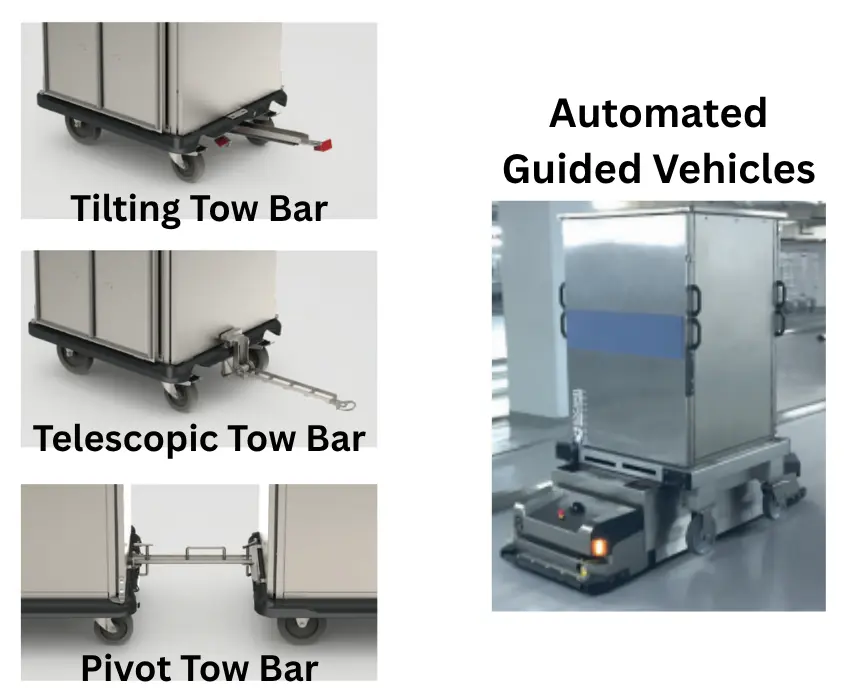

Flexible Tow Bar Configurations with AGV Compatibility
Designed for maximum operational versatility, the Double Flow ErgoServ 4S trolley is available with a range of tow bar configurations, including tilting, telescopic and pivot tow bar options to suit different handling requirements and facility layouts. These adaptable solutions provide enhanced manoeuvrability, improved ergonomics and greater convenience when transporting multiple trolleys across healthcare environments. For advanced automation and future ready operations, the ErgoServ 4S trolley is also compatible with Automated Guided Vehicles (AGVs), enabling seamless integration into modern logistics systems.

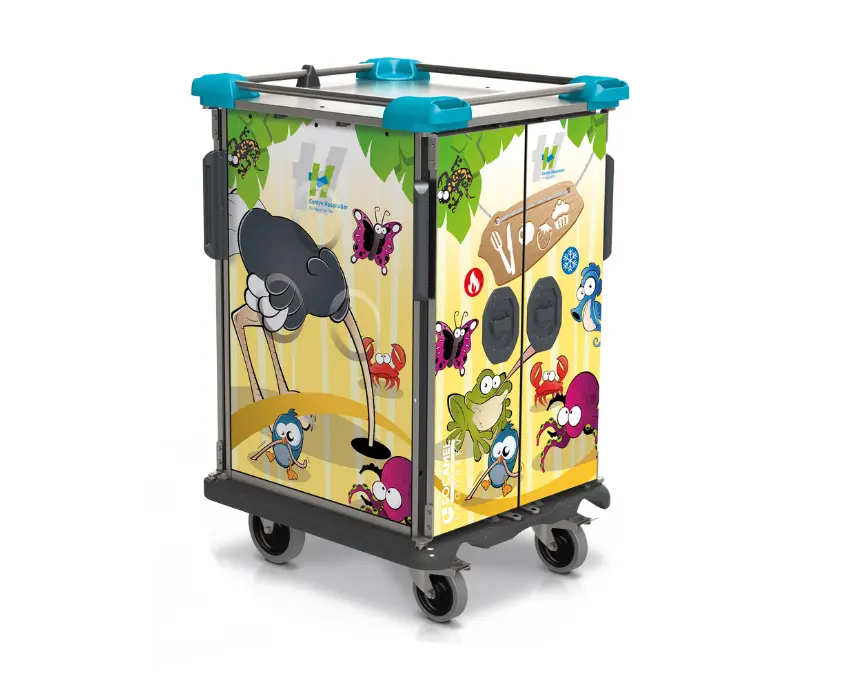

Customisable Design to Reflect Your Identity
Create a meal distribution solution that aligns with your organisation's visual identity with the customisable trolley design options available for Double Flow ErgoServ 4S. Beyond its advanced performance and functionality, the trolley's exterior appearance can be tailored with personalised finishes, colours and design elements to complement your facility's branding and aesthetic requirements. Available as an additional customisation option, this feature allows healthcare organisations to create a cohesive and professional environment while maintaining the reliability and performance expected from the ErgoServ 4S system.
Tray Options
A range of tray configurations is available to support different kitchen workflows, service styles and operational requirements. Designed to integrate seamlessly with the Double Flow ErgoServ 4s system, each tray option ensures reliable performance, consistent handling and efficient meal distribution. Whether focused on capacity, presentation or specific dietary needs, these flexible tray solutions allow facilities to tailor their setup to achieve optimal results in any foodservice environment.
Flat Gastronorm V1
Antibacterial- 530mm x 325mm
Flat Gastronorm V2
530mm x 325mm
2 Compartments Gastronorm
2 compartments- 530mm x 325mm
Flat Optimum
530mm x 260mm
Flat Confort
530mm x 370mm
2 Compartments Confort
2 compartments- 530mm x 370mm
Gastronorm +
560mm x 325mm
Gastronorm XS
420mm x 280mm
