Socamel CompactServ 4S Senior 2x13 levels

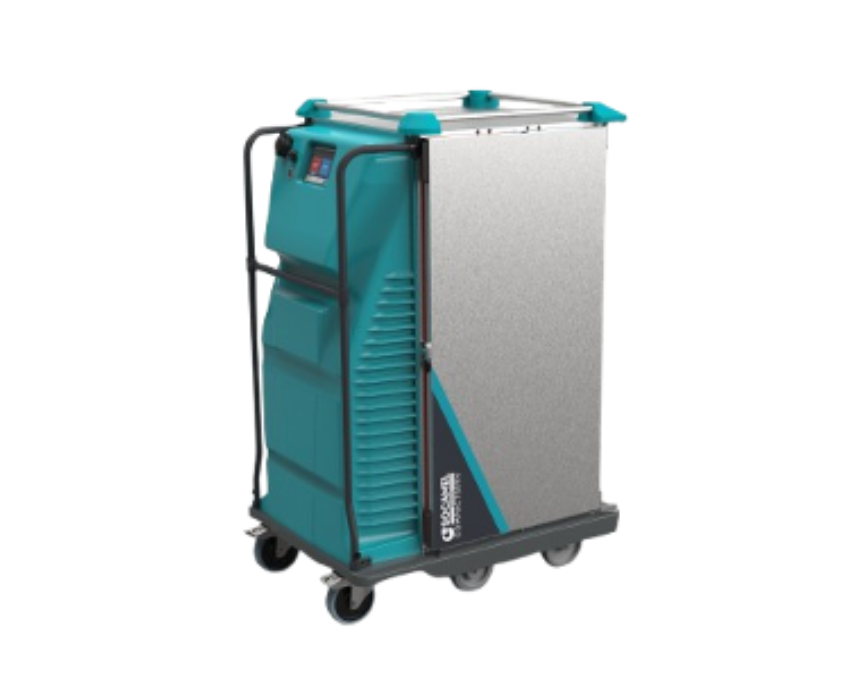

Socamel CompactServ 4S Senior 2x15 levels is a high capacity meal distribution trolley designed for efficient tray service in hospitals, aged care and other healthcare environments. With 26 gastronorm tray positions, it combines generous capacity with Socamel's compact, all in one design, helping staff streamline meal distribution while making efficient use of available space.
Built around Socamel's onboard technology and integrated thermal barrier, the CompactServ 4S Senior supports the controlled holding and rethermalisation of meals while helping maintain the quality and temperature of hot and cold food components. This ensures that meals are served in optimal condition, improving patient satisfaction and supporting dietary compliance across large scale operations.
Designed with usability in mind, the trolley offers smooth handling, ergonomic access to trays and robust construction suited to the demands of busy healthcare settings. Its efficient layout reduces handling time for staff, while the insulated structure helps minimise heat loss and energy consumption during service cycles.
Smooth Manoeuvrability
Designed for smooth and easy movement, makes navigating busy corridors, dining areas and service spaces simple for staff.
Efficient Capacity Use
Designed to support high volume meal distribution while maintaining an organised internal layout, ensuring staff can serve efficiently even during peak service times.
Tailored Appearance
Choose from customisable exterior finishes and design options to achieve a professional look, available at an additional cost.

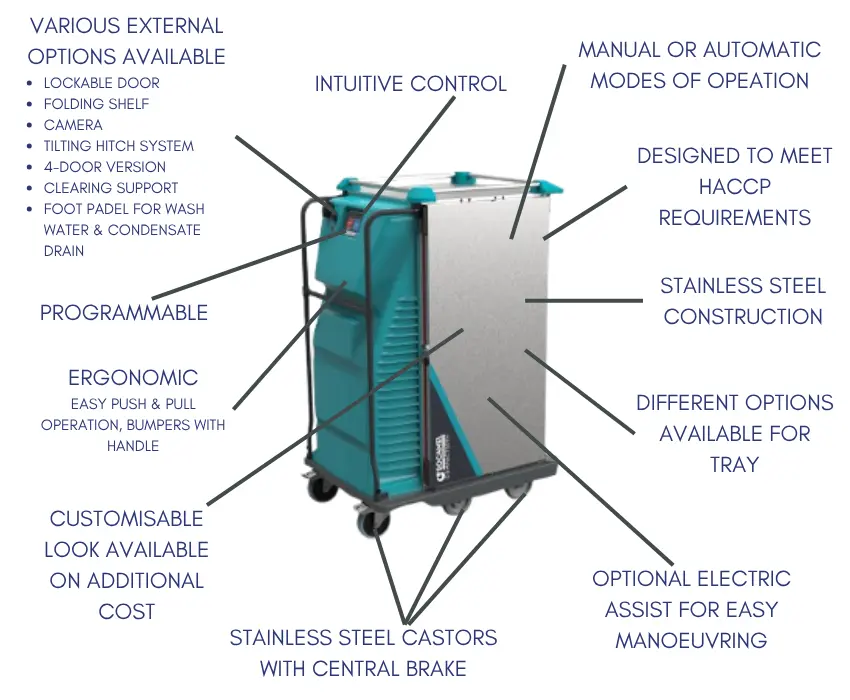

Key Features:
- iServ TouchScreen control: Intuitive operation with programmable services, real time temperatures, diagnostics and cycle management.
- Compact Footprint: Space efficient design maximises available floor space without compromising capacity.
- Easy Manoeuvrability: Ergonomic handles and smooth movement make daily trolley handling easier for staff.
- Motorised Mobility: Optional powered movement reduces physical effort an improves workplace ergonomics.
- Robust & Safe Construction: Durable stainless steel and aluminium construction with insulated walls and impact protection.
- Easy Cleaning & Maintenance: IPX5 protection, smooth surfaces and tool free removable components simplify cleaning.
- SOCONNECT Fleet Management: Optional cloud based monitoring supports temperature tracking, maintenance, compliance and equipment performance.
- Customisable Design: Elegant, understated trolleys can be customised to complement your establishment's identity at an additional cost.

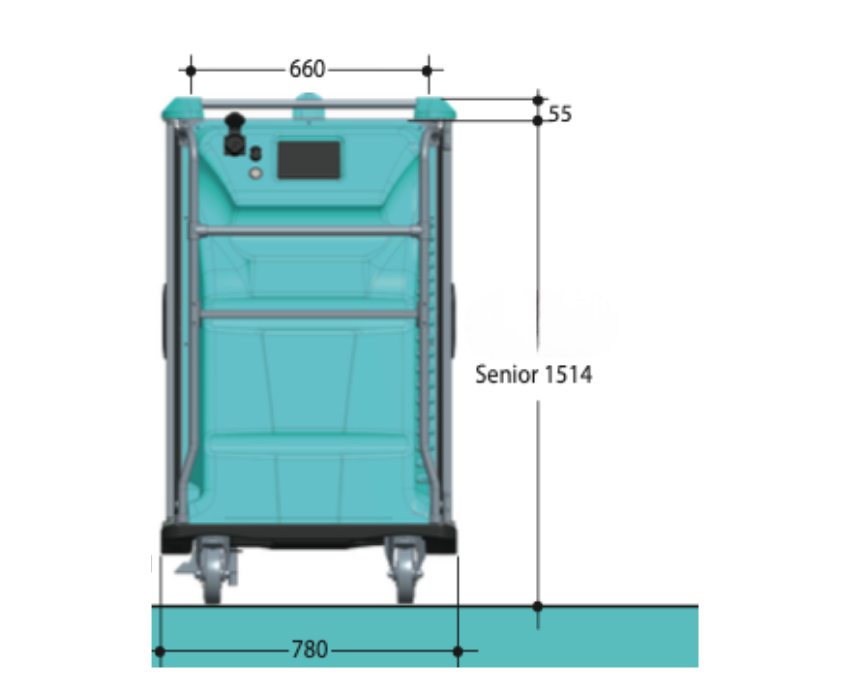

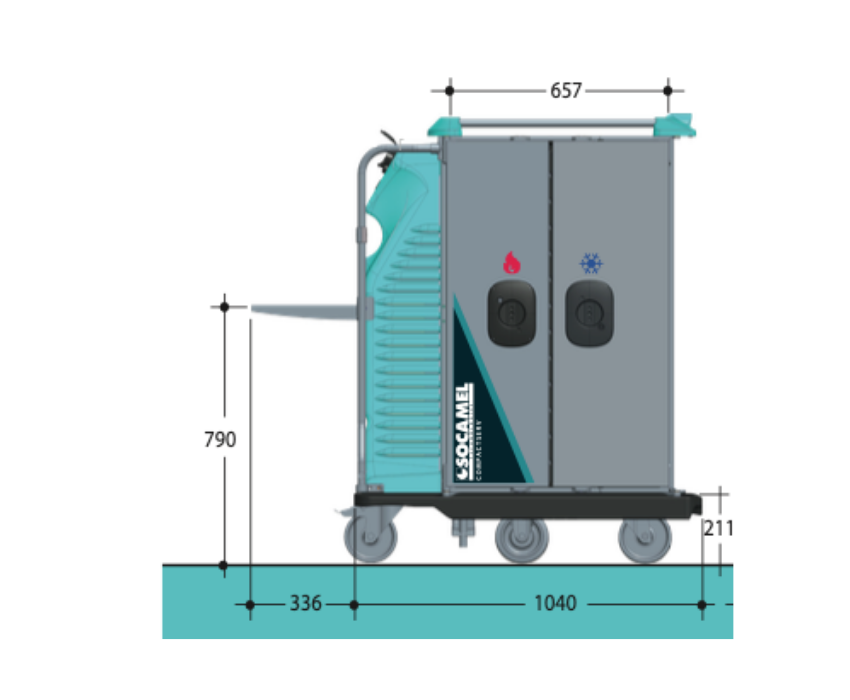

Technical Specifications
Socamel CompactServ 4s Senior 2x13 levels
The ErgoServ Trolley:
Dimensions (W x D x H) | 795mm x 920mm x 1080mm |
Net Weight | 105 kg |
Maximum Load | 75 kg |
Number of Levels | 2 x 8 |
Maximum number of trays | 16 |
Pitch between levels | 78 mm |
Push/Pull/Motion | 2 / 2 / 1.5 daN |
For mobile devices, scroll to the right to view table.

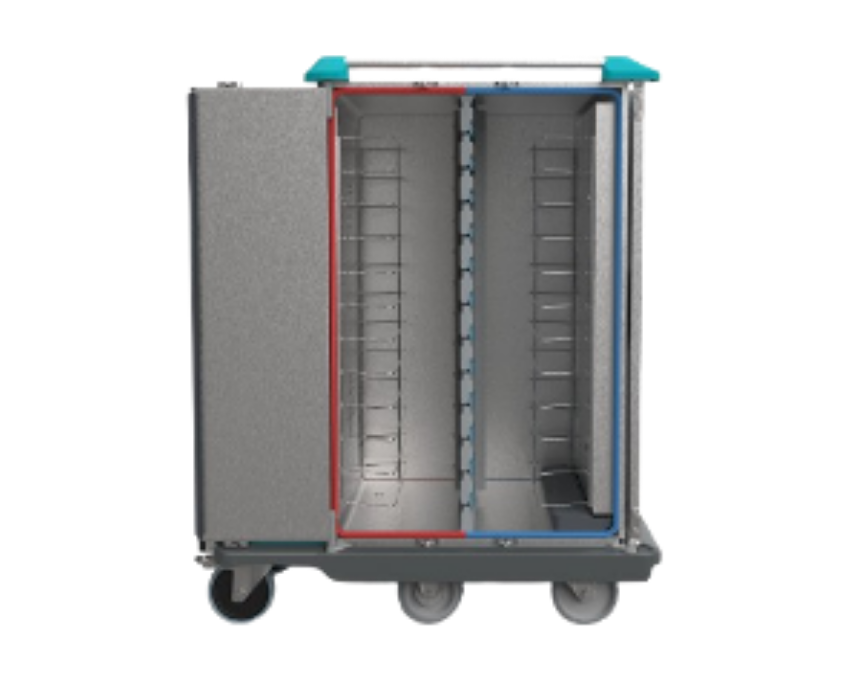

Forced and Directed ThermoConvection Technology
Socamel CompactServ 4S features advanced forced and directed thermo convection technology designed to ensure highly consistent and precisely controlled temperature management throughout the entire trolley, regardless of load configuration or service conditions. By actively circulating conditioned air rather than relying on passive convection, the system maintains stable temperatures across all compartments and shelf levels, reducing hot or cold spots that can affect food quality.
Engineered to support a wide range of meal delivery requirements, the system enables hot service for maintaining prepared meals at a safe and appetising serving temperatures over extended periods, chilled distribution for preserving the freshness and integrity of cold dishes, dairy products and dessert, and frozen service for the safe transport and distribution of frozen items without risk of partial thawing. Each mode is optimised to respond quickly to temperature changes caused by door openings or loading cycles, helping to maintain strict food safety standards.
Through precisely directed airflow channels within the trolley structure, the thermo convection system ensures uniform air distribution across all levels and compartments. This controlled circulation not only stabilises internal temperatures but also improves energy efficiency by reducing unnecessary cooling or heating cycles. As a result, food is better preserved, texture an taste are maintained and meals arrive in optimal condition, ready for immediate service in demanding catering and healthcare environments.
Features & Benefits Breakdown
Intelligent Control at your Fingertips

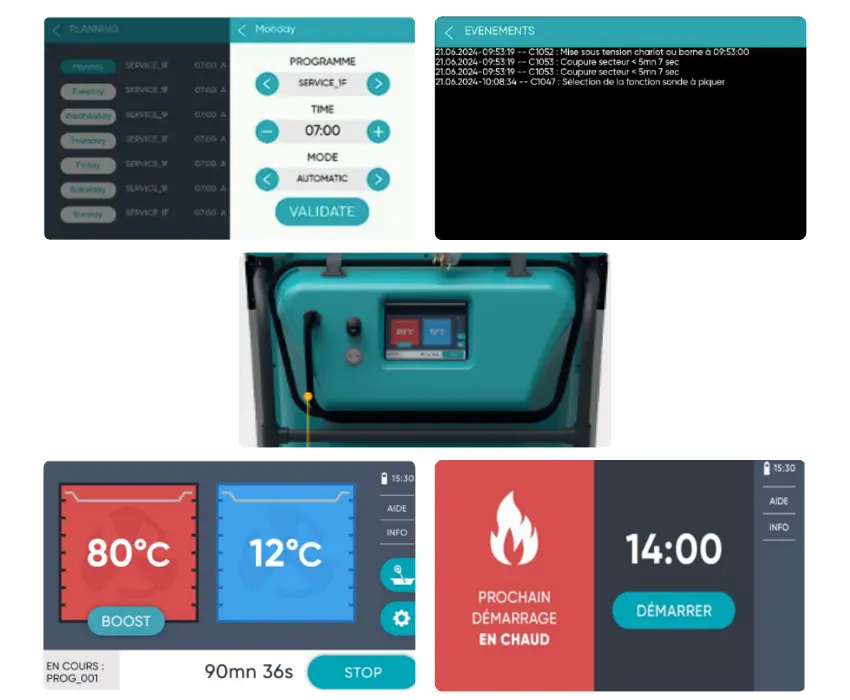

The iServ touchscreen interface makes the Socamel CompactServ 4S simple, intuitive and efficient to operate, giving staff complete control over key trolley functions from one central interface. With five programable settings for up to four services per day, iServ helps streamline daily meal distribution while supporting energy optimisation through intelligent control and gas pressure monitoring. Staff can view real time temperatures and the remaining time until service, access temperature history and event logs with over one month of timestamped, categorised event storage and use integrated diagnostics and maintenance assistance for easier troubleshooting and servicing. Additional controls include trolley standby mode, manual heating ON/OFF and three cycle start up options (automatic, manual and delayed) providing greater flexibility and control across different service requirements.
Safe & Ergonomic meal Distribution trolley
Built for demanding meal distribution environments, the Socamel CompactServ 4S combines robust construction, safety and ergonomic design for reliable daily use. Made from high quality stainless steel and aluminium, including recycled materials, it offers long term durability with up to 70% recyclability at end of life. Insulated outer walls protect users from heat, while smooth surfaces reduce the risk of cuts and make cleaning easier. Its lightweight frame and six wheel system ensure smooth, stable movement, with an optional feature for better floor contact on slopes and uneven surfaces. Front and rear handles support users of different heights and corner bumpers add impact protection. Practical features such as a large top surface, folding shelf, one hand slam shut doors and a removable air dam system simplify tray handling. An ergonomic LED information bar provides clear operational feedback, making the CompactServ 4S a safe, efficient and highly practical solution.
Designed for Daily Performance

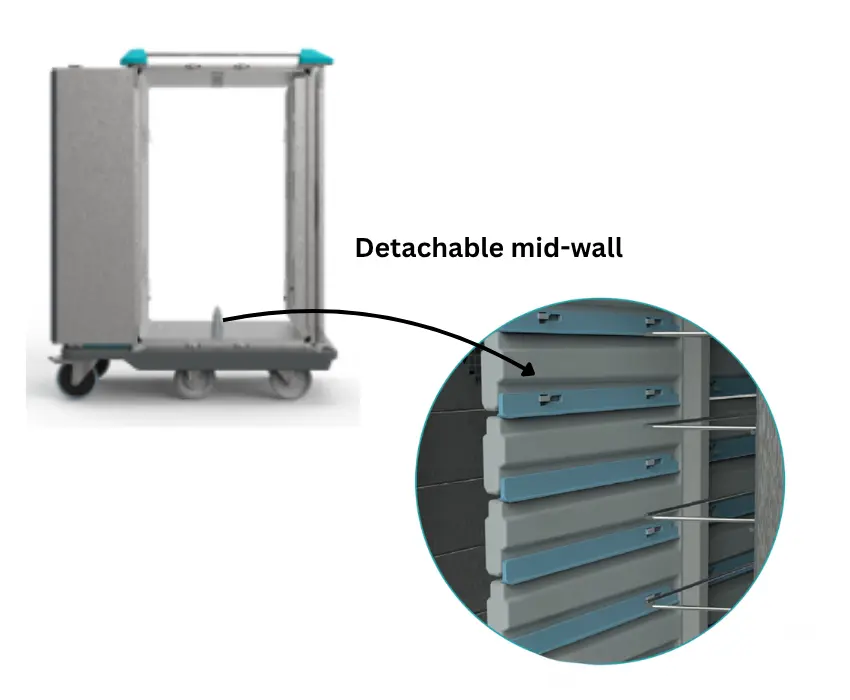

The Socamel CompactServ 4S is engineered for fast, efficient and hygienic cleaning, enabling staff to maintain exceptional cleanliness standards with minimal effort. Featuring IPX5 protection, the trolley is fully resistant to water jets, while its smooth vats, rounded corners and monobloc bumper ensure optimal drainage and eliminate areas where residue could build up. Removable, interchangeable air dams and slot covers can be easily taken out without tools, allowing quick and thorough access for cleaning. The interior vats can be cleaned using a sponge, brush or jet spray, and an integrated drain foot pedal or retention tray offers a practical solution for collecting wash and condensate water. Together, these intelligent design features make the CompactServ 4S simple to clean, easy to maintain and always ready for the next service.
Smart Cloud Control for Meal Distribution

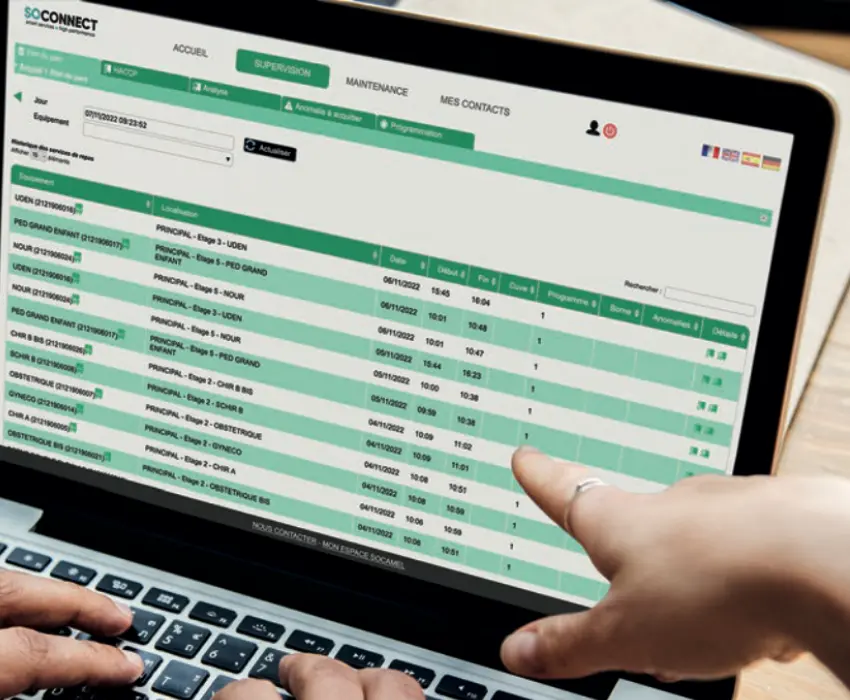

SOCONNECT is Socamel's optional cloud based platform delivering a complete 360° solution for meal distribution and equipment fleet management. It centralises data, maintenance and performance monitoring, enabling organisations to move from basic upkeep to protective control of compliance, efficiency and long term asset performance. The system continuously tracks hot and cold temperatures, delivering real time data and instant SMS/email alerts for any deviations, with optional probe checks for pot verification. Built in analytics track performance trends, detect equipment drift, optimise maintenance, extend asset lifespan and support refurbishment planning. An integrated CMMS gives full visibility of maintenance activities, while fleet reporting, alarms, asset tracking and TCO insights enable smarter operational decisions.

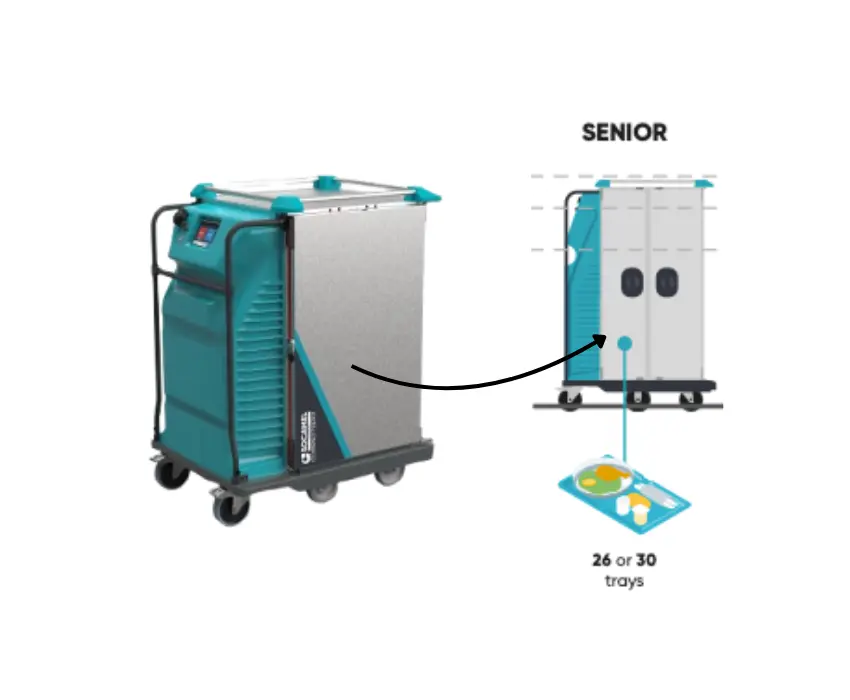

Space Saving Design That Works Smarter
The Socamel CompactServ 4S is engineered with a small footprint to maximise every centimetre of available space while still delivering full meal distribution performance. Its intelligent, space saving design enables staff to move freely and safely through narrow corridors, buy service areas and confined environments without disruption to workflow or service speed. Despite its compact size, the CompactServ 4S offers impressive tray capacity and practical onboard storage, ensuring that efficiency is never sacrificed for space. Every element has been carefully considered to reduce bulk while maintaining strength stability and ease of use in daily operations. It is the ideal solution for healthcare and catering environments where space is limited but performance expectations remain high.

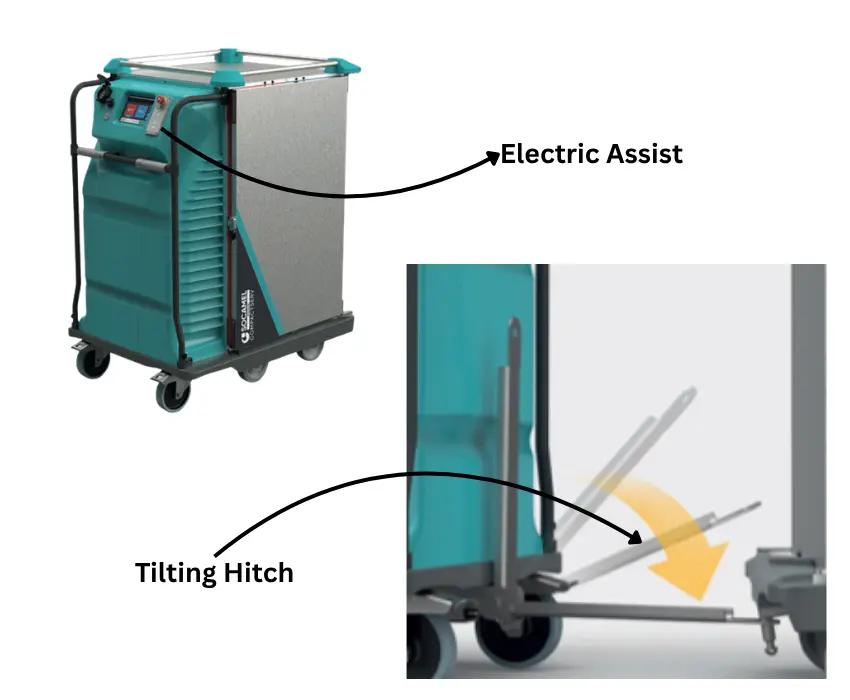

Effortless Mobility for Demanding Service Environments
The Socamel CompactServ 4S can be equipped with a motorised drive system designed to make daily trolley movement easier, reduce physical effort and enhance workplace ergonomics. Sensitive, ergonomic handles provide an intuitive grip and responsive control, enabling staff to manoeuvre the trolley smoothly and effortlessly even in high demand service environments. For specialised transport needs, the optional wheel up version automatically raises and lowers the trolley, making it ideally suited for towable transport applications. When combined with a tilting hitch system, this solution delivers superior mobility, improved handling and greater operational flexibility for facilities with specific logistical requirements.

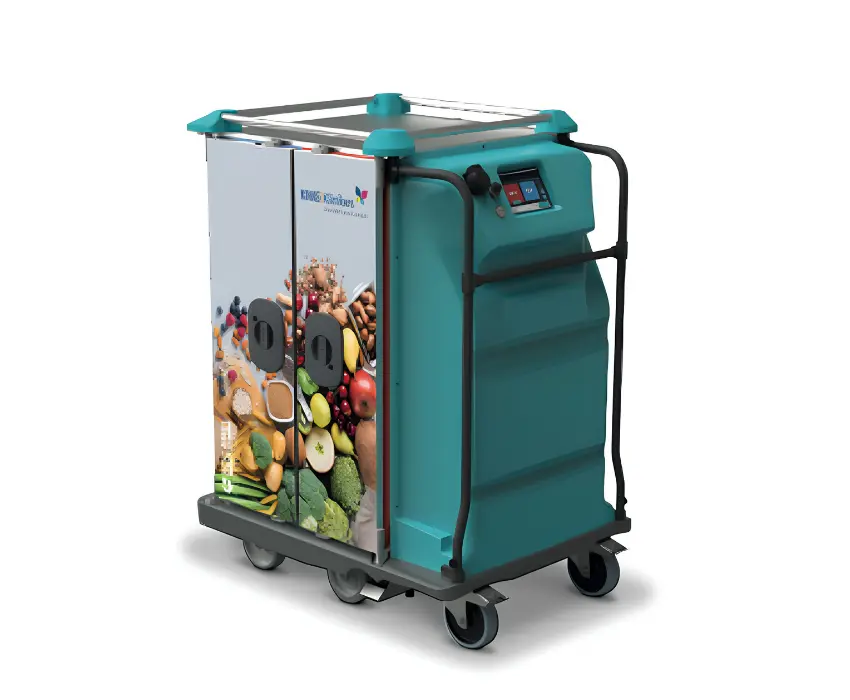

Sustainable Elegance in Meal Distribution
The Socamel CompactServ 4S combines elegant, understated design with a strong commitment to corporate social responsibility and environmental performance, helping distribution trolleys complement the image and standards of your establishment. Designed to blend seamlessly into professional healthcare and catering environments, the trolley can be customised with a range of finishes and design options to create a distinctive look tailored to your facility. This balance of refined aesthetics, personalisation and responsible design makes the CompactServ 4S more than a functional meal distribution solution, it becomes a seamless part of your establishment's overall environment and identity.

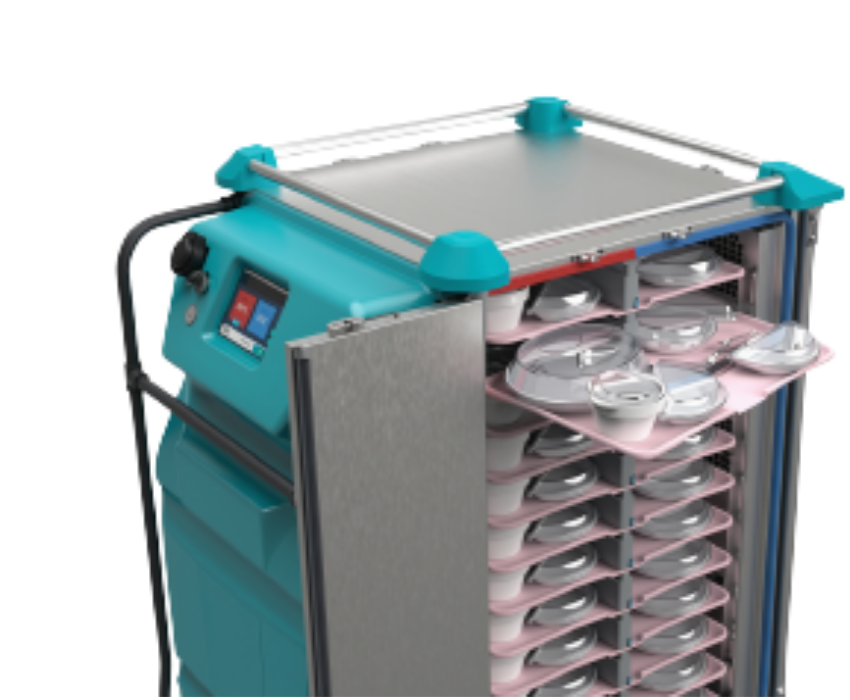

Tray Options
Socamel CompactServ 4S is compatible with a range of tray options to suit different meal distribution requirements and service configurations. Tray formats can be selected to support the specific needs of your establishment, helping optimise meal presentation, portioning and efficient tray loading. Designed for smooth insertion and removal, the trolley's internal configuration makes it easy for staff to handle trays across all levels, supporting a streamlined workflow from meal preparation through to final service. With flexible tray solutions available, the CompactServ 4S can be tailored to different meal delivery models, capacity requirements and operational preferences.
Flat Gastronorm V1
530mm x 325mm
Flat Gastronorm V2
530mm x 325mm
2 Compartments Gastronorm
2 compartments- 530mm x 325mm
Gastronorm +
570mm x 325mm
